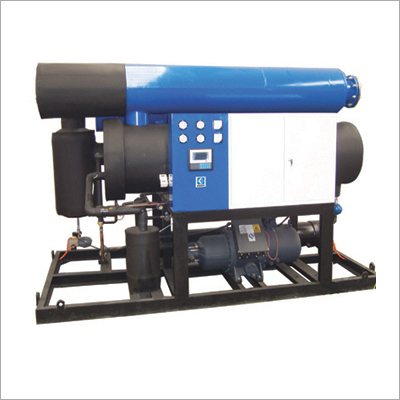

High Capacity Refrigerated Air Dryer

ADH- Parameter

120W

150W

200W

250W

300W

400W

500W

600W

800W

1000W

1500W

2000W

3000W

4000W

Handling capacity m3/min

13.5

17

23

27

34

45

55

65

87

110

160

210

320

410

Pressure

0.2-1.0MPa

Pressure Dew point Temp.

2-10

Refrigerant

R-22

Power

350Hz/380

Compressor Power(KW)

2.2

2.9

3.7

4.8

5.5

7.5

8.8

11

15

22

30

37

45

60

Front Cold Water Pipe Caliber

ZG3/4"

ZG1"

ZG1"

ZG11/2"

ZG11/2"

ZG2"

ZG2"

ZG11/2"

ZG11/2"

ZG3"

ZG3"

ZG3"

ZG4"

ZG4"

Cold Water Pipe Inlet/Outlet Caliber

ZG1/2"

ZG3/4"

ZG3/4"

ZG1"

ZG1"

ZG11/4"

ZG11/2"

ZG2"

ZG2"

ZG21/2"

ZG3"

ZG4"

ZG5"

ZG5"

Air Inlet/Outlet Caliber

DN50

DN65

DN80

DN80

DN80

DN100

DN100

DN125

DN150

DN150

DN200

DN200

DN250

DN300

Length mm

1550

1550

1800

1800

1950

2000

2250

2400

2450

2600

3300

3800

4000

4000

Width mm

650

780

780

780

850

950

1100

1300

1265

1265

1750

1750

2000

2800

Height mm

1350

1430

1530

1430

1800

1800

1840

2000

2150

2180

2400

2500

2800

2850

Weight(Kg)

420

510

650

750

910

1000

1800

2000

2500

2800

3000

3500

4000

4600
