Heatless Desiccant Dryer
Product Details:
X
Product Description

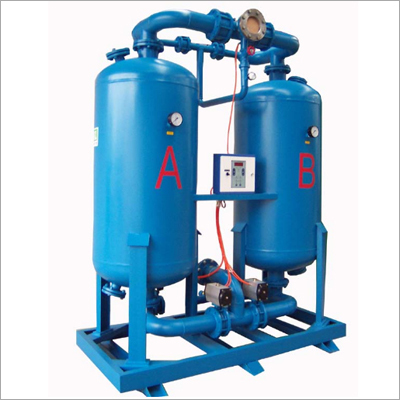

Heatless Desiccant Dryer
Product Description:
Heatless Desiccant air dryer
Technical Specification
- Large capacity design ensures stable outlet dew point that can be adapted to the aging of the desiccant and the load changes.
- Main parts use the famous brands to guarantee the stability of the system.
- Intergrated product enables the installation to be very easy.
- Optional Configuration
- Molecular sieve
- Dew point switch mode
- High dew point alarm/lock
- Front/back filter pre-installed
- PLC LCD monitor
Communication port
Technical Specification
| Pressure | 0.4-1.0MPa |
| Rated Inlet Air Temp. | 45oC |
| Outlet Dew Point | -40oC(PDP)~ -70oC(PDP) |
| Air Loss | 14.5% |
| System Pressure Drop | 0.021MPa |
| Switch Cycle | 5-10min(adjustable) |
| Desiccant | Activated alumina |
| Inlet Oil | 0.1ppm |
| Power | 220V/50HZ |
Models and Parameters
| Model- SUNKXD | 5 | 10 | 20 | 30 | 60 | 75 | 100 | 120 | 150 | 200 | 250 | 300 | 400 | 500 | 600 | 800 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 3500 | 2000 |
| Handling capacity m3/min | 0.7 | 1.6 | 2.6 | 3.8 | 7 | 8.5 | 11.5 | 13.5 | 17 | 23 | 27 | 34 | 45 | 55 | 65 | 87 | 110 | 130 | 160 | 210 | 260 | 320 | 360 | 410 |
| Length mm | 690 | 690 | 780 | 840 | 1010 | 1010 | 1240 | 1240 | 1280 | 1320 | 1700 | 1750 | 1850 | 1900 | 2160 | 2416 | 2560 | 2660 | 2760 | 2960 | 3320 | 3740 | 4150 | 4810 |
| Width mm | 500 | 500 | 500 | 540 | 700 | 700 | 800 | 800 | 860 | 860 | 930 | 960 | 1060 | 1120 | 1240 | 1440 | 1560 | 1660 | 1760 | 1860 | 2060 | 2170 | 2310 | 2490 |
| Height mm | 915 | 1298 | 1250 | 1260 | 1588 | 1727 | 1958 | 2232 | 2360 | 2477 | 2570 | 2626 | 2646 | 2730 | 2784 | 2827 | 2812 | 2852 | 3136 | 3180 | 3170 | 3190 | 3210 | 3300 |
| Pipe Caliber | ZG1/2 | ZG1 | ZG1 | ZG1 | ZG11/2 | ZG11/2 | ZG2 | ZG2 | DN65 | DN80 | DN80 | DN80 | DN100 | DN100 | DN125 | DN150 | DN150 | DN150 | DN200 | DN200 | DN250 | DN250 | DN300 | DN300 |
| Weight(Kg) | 120 | 190 | 280 | 320 | 480 | 540 | 650 | 690 | 780 | 920 | 1050 | 1200 | 1530 | 1750 | 2230 | 2710 | 4130 | 4700 | 5800 | 7370 | 9020 | 11900 | 13100 | 14800 |
